Custom Plastic Injection Molding Service
We provide comprehensive custom plastic injection molding services, from mold design to finished product delivery, specializing in solving complex plastic component manufacturing challenges for global clients. We have 16 years of mold manufacturing experience and advanced production equipment, Huashuo Plastic transforms your design concepts into high-quality end products.
- ISO 9001:2015, CE
- T1 sample as fast as 2 weeks
- No minimums
What is plastic injection molding?
Plastic injection molding is a highly efficient forming process that involves heating thermoplastic or thermosetting plastic pellets to a molten state, injecting them under high pressure into the cavities of precision molds, and then cooling and setting them to produce the desired plastic products.
This process features high forming precision, excellent dimensional consistency, high production efficiency, and suitability for mass production. It enables the single-step molding of products with complex structures and intricate details.
Injection Molding Working Principle
The working principle of injection molding involves adding plastic raw material into the hopper of an injection molding machine. Within the heating barrel, electric heating and the shearing action of the rotating screw gradually melt and uniformly plasticize the plastic, forming a melt with excellent flow properties to prepare for subsequent molding.
After the mold closes, the screw advances forward, injecting the molten plastic into the mold cavity under high pressure. Holding pressure compensates for material shrinkage. Once the plastic cools and solidifies, the mold opens, and the ejector mechanism removes the finished part, completing a stable and efficient injection molding cycle.
Plastic Injection Molding Services for
Custom Parts
Our manufacturing processes encompass precision mold tooling, overmolding, and insert molding. We provide comprehensive turnkey solutions covering product design support, mold design and fabrication, and finished part production. From concept development to final delivery, our team ensures consistent quality, efficient lead times, and strict cost control at every stage.

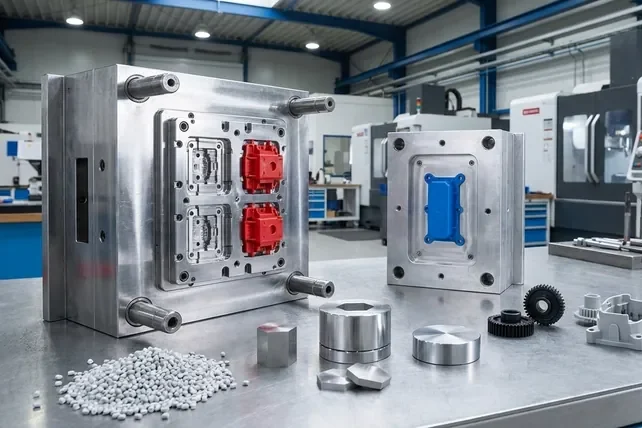

Injection Mold Tooling
Custom-made high-precision aluminum and steel molds based on drawings or samples, with tolerances controlled within ±0.05 mm. Includes mold flow analysis to reduce development risks and enhance production efficiency, suitable for mass production.

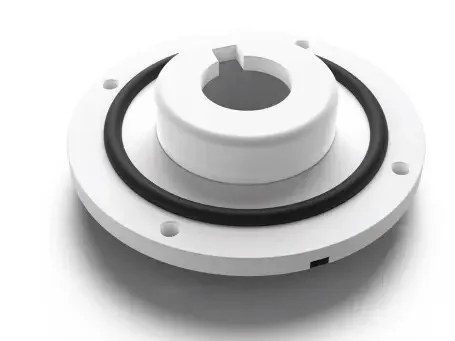

Overmolding
Integrates multiple materials through multi-step injection molding to enhance product performance and tactile feel. Supports color and surface customization, ideal for soft-touch, insulated, and high-durability components.

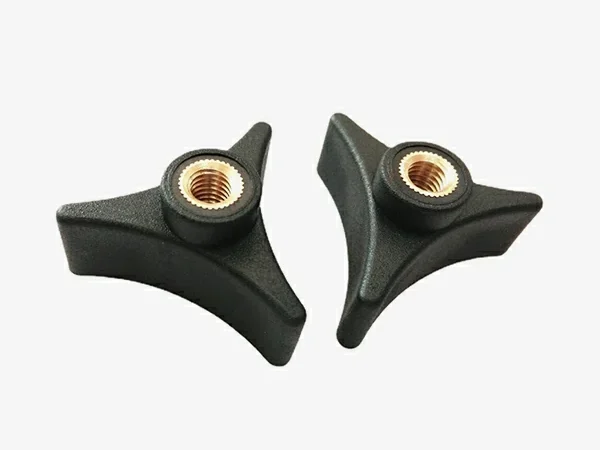

Insert Molding
Embeds metal or functional inserts during molding to strengthen structural integrity, reduce assembly steps, and boost efficiency. Suitable for high-structural-demand mass production, balancing performance and cost-effectiveness.

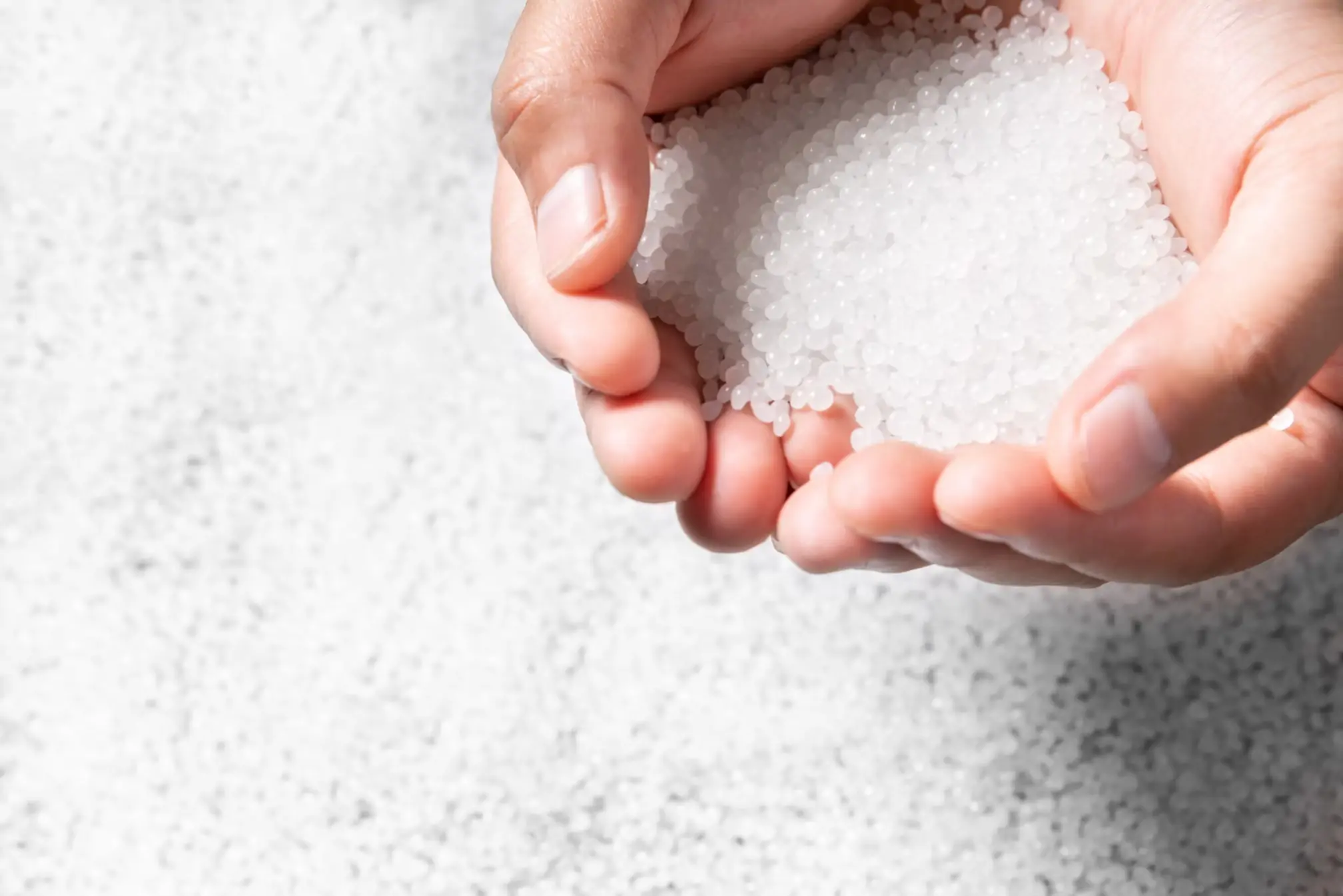

Injection Moulding Materials Selection
We offer an extensive selection of injection molding materials, covering a wide range of common thermoplastics and thermosets to meet the functional and aesthetic requirements of diverse industries and products.

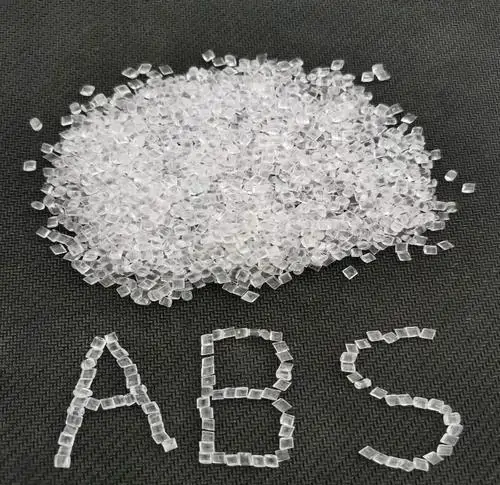

ABS
ABS material is suitable for injection molding, offering excellent flow properties and dimensional stability. It features high mechanical strength, outstanding impact resistance, and superior surface quality, making it ideal for forming complex structures and plastic products with high aesthetic requirements.
Through color matching and functional modification, ABS can meet diverse application needs, finding widespread use in home appliances, electronics, automotive interiors, industrial components, and daily consumer goods.
Standard Colors: Natural (off-white), black, gray, white, blue, red, etc.
Customizable Properties: Flame retardancy, reinforcement (glass fiber reinforced), UV resistance, anti-static properties, heat resistance, low-temperature resistance, chemical corrosion resistance, matte or high-gloss surface finishes.

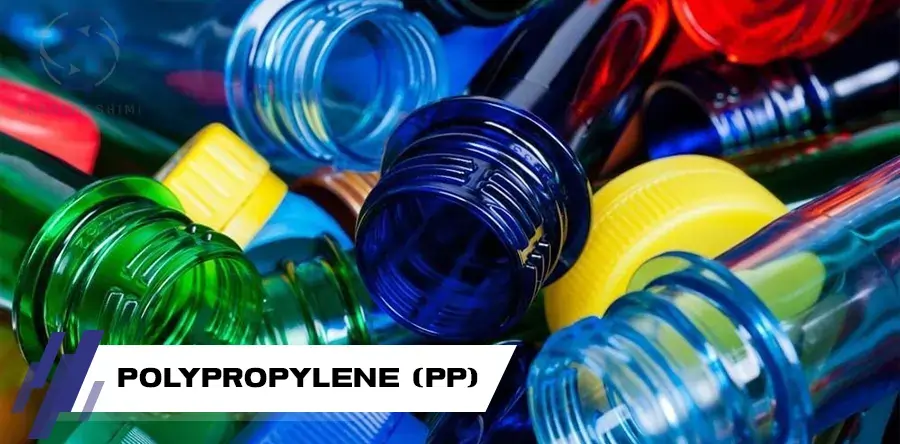

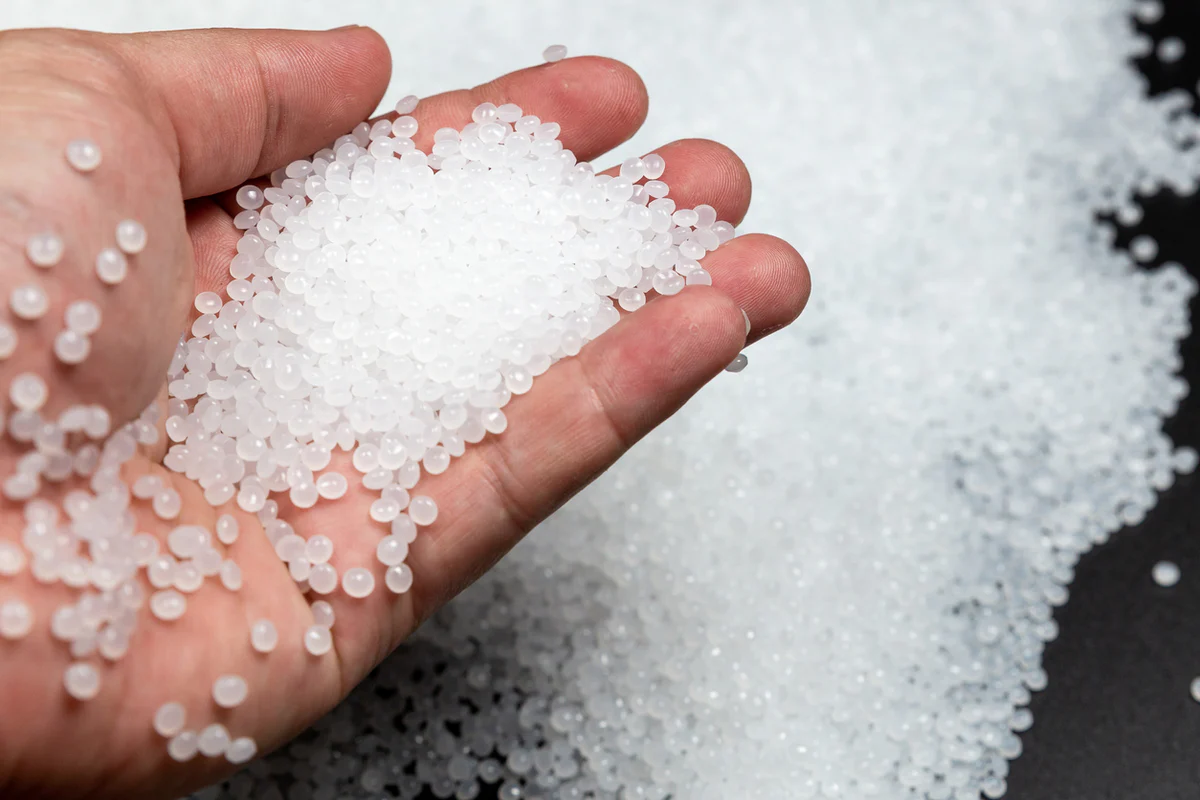

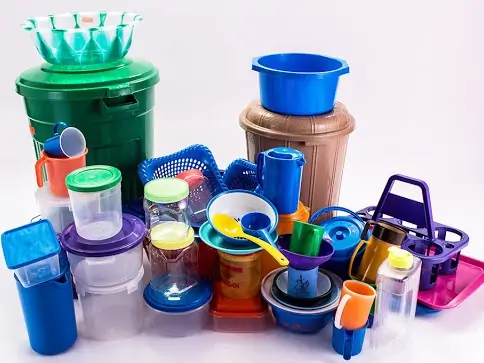

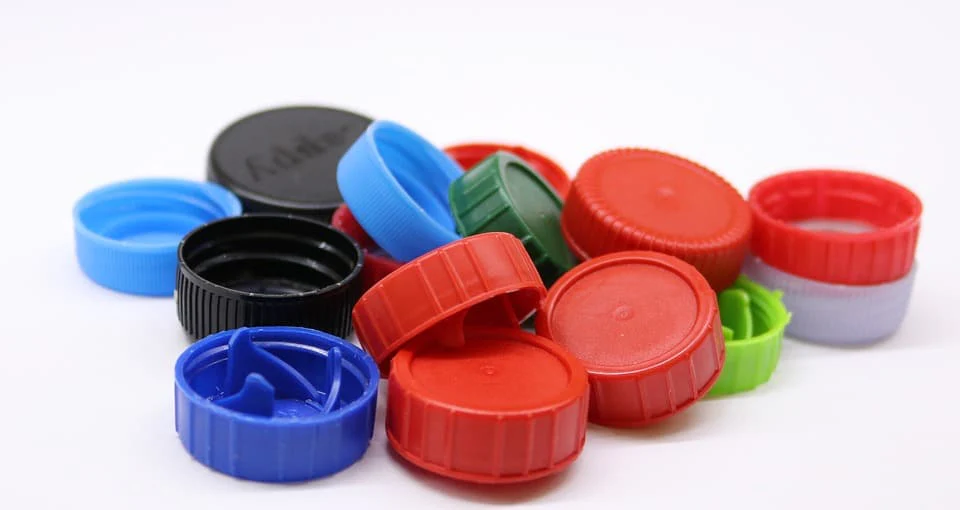

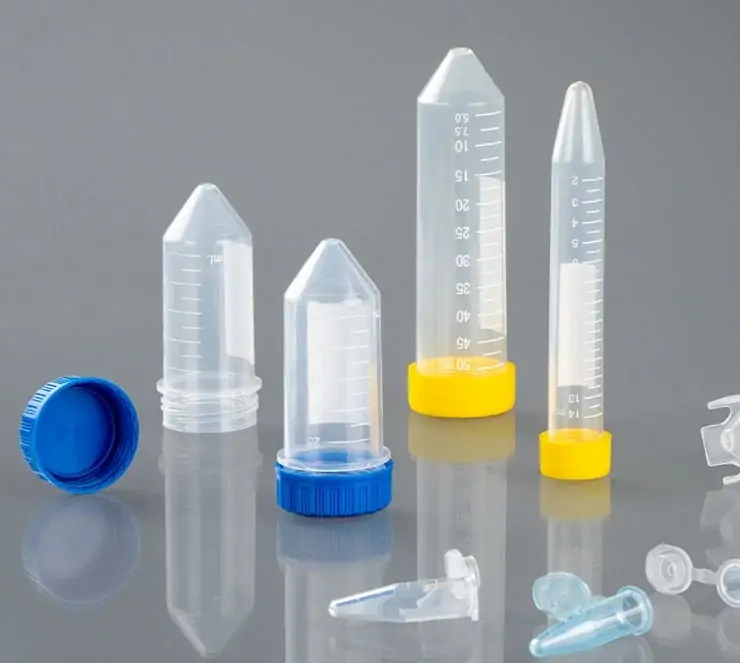

PP (Polypropylene)
PP material is suitable for injection molding, featuring excellent flow properties and low density, making it particularly ideal for high-volume production. It offers outstanding chemical resistance, corrosion resistance, and high heat resistance, making it a common material in the automotive, home appliance, and packaging industries. PP also possesses high rigidity and fatigue resistance, making it suitable for manufacturing plastic parts requiring aging resistance and wear resistance.
Through the addition of various modifiers, PP can be tailored to meet diverse application requirements, such as enhancing UV resistance, flame retardancy, and antistatic properties. Widely used in automotive components, appliance housings, food packaging containers, medical devices, and various consumer goods.
- Standard Colors: Natural (white), black, blue, red, yellow, etc.
- Customizable Properties: UV resistance, flame retardancy, reinforcement (glass fiber reinforced), antistatic properties, heat resistance, chemical corrosion resistance.

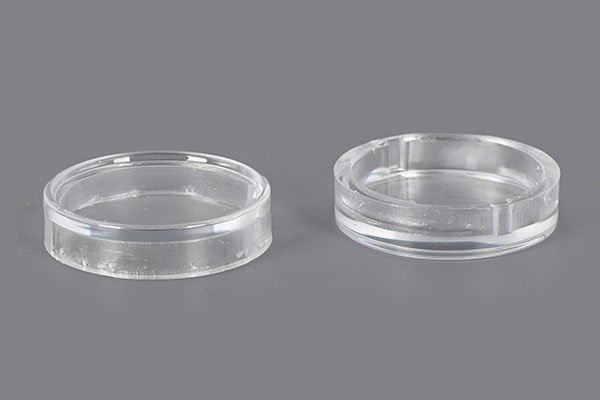

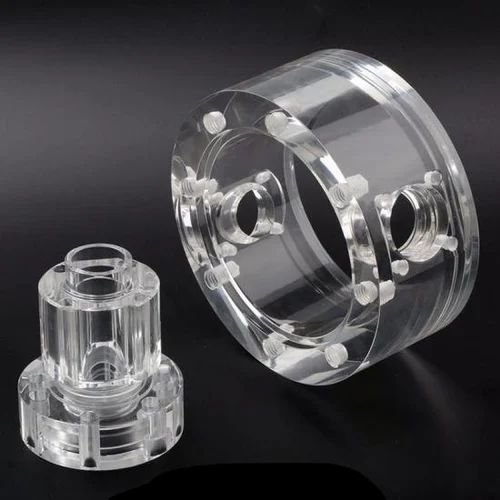

pC (Polycarbonate)
PC material is suitable for injection molding, offering exceptional toughness and high impact strength. It is widely used in plastic products requiring transparency or high strength. PC exhibits excellent heat resistance and high UV resistance, making it ideal for applications demanding both strength and clarity, such as transparent covers and windows.
PC also possesses outstanding electrical insulation properties and can withstand elevated operating temperatures, making it a common choice for electronic enclosures, automotive components, and optical lenses.
- Standard Colors: Clear, Natural (Beige), Black, Blue, etc.
- Customizable Properties: Flame Retardancy, UV Resistance, Reinforcement (Glass Fiber Reinforced), Antistatic Properties, High Temperature Resistance, Chemical Resistance.

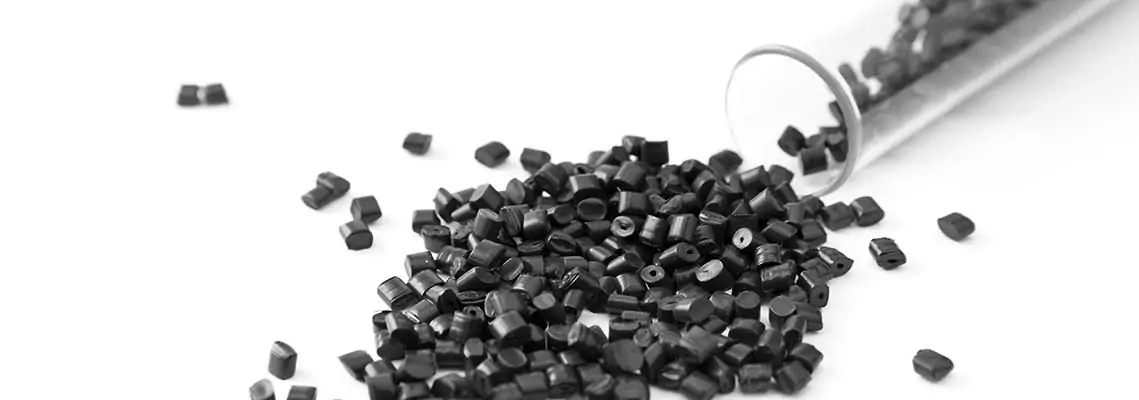

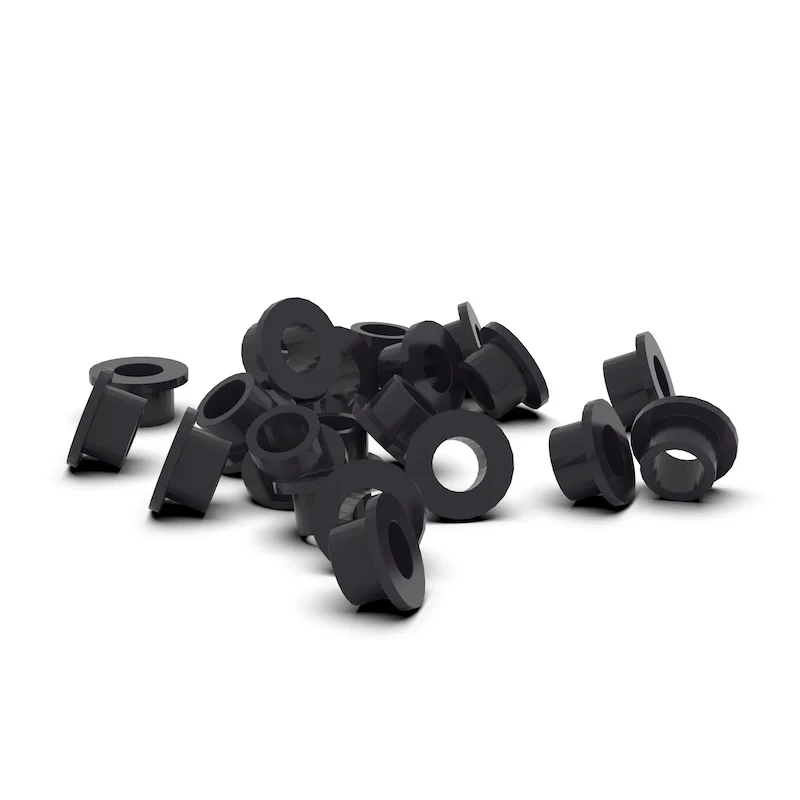

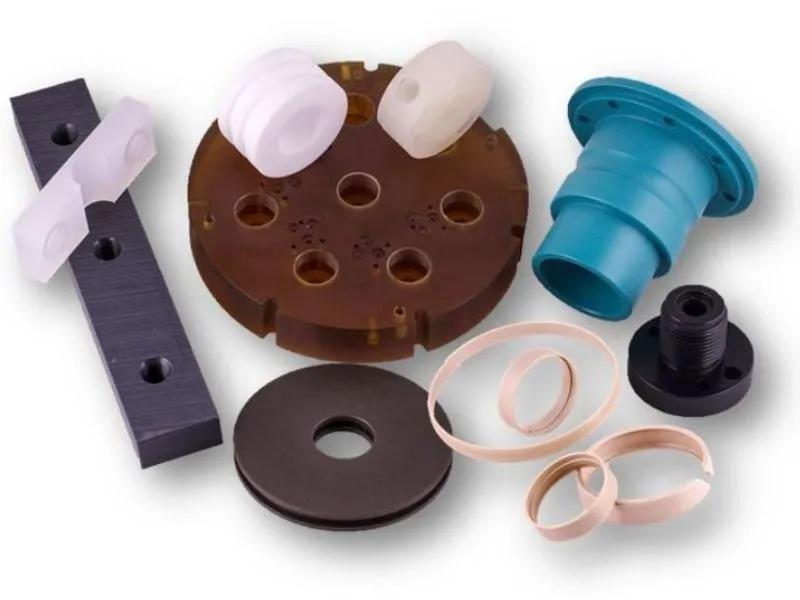

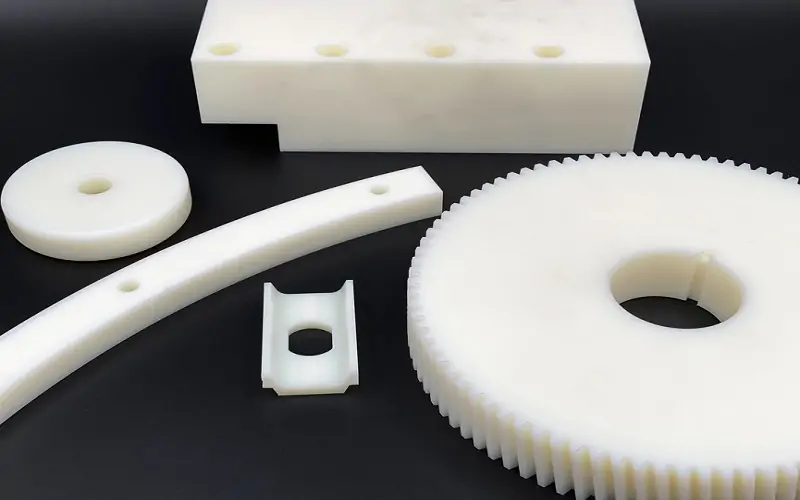

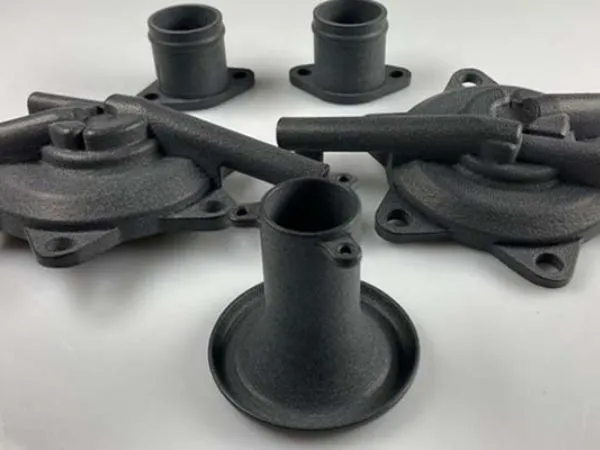

PA (Polyamide, Nylon)
PA material excels in injection molding, offering high mechanical strength, wear resistance, corrosion resistance, and heat resistance. It is suitable for parts requiring durability and long-term load-bearing capacity. Nylon is particularly well-suited for producing components with complex geometries and is commonly found in automotive, electronic, and electrical applications.
PA materials possess good self-lubricating properties and low friction characteristics, making them suitable for manufacturing mechanical components such as gears and bearings. Additionally, nylon can be reinforced with glass fiber to enhance its strength and rigidity.
- Standard Colors: Natural (off-white), black, gray, etc.
- Customizable Properties: Reinforced (glass fiber reinforced), UV resistance, flame retardancy, high-temperature resistance, low-temperature resistance, chemical corrosion resistance, anti-static properties.

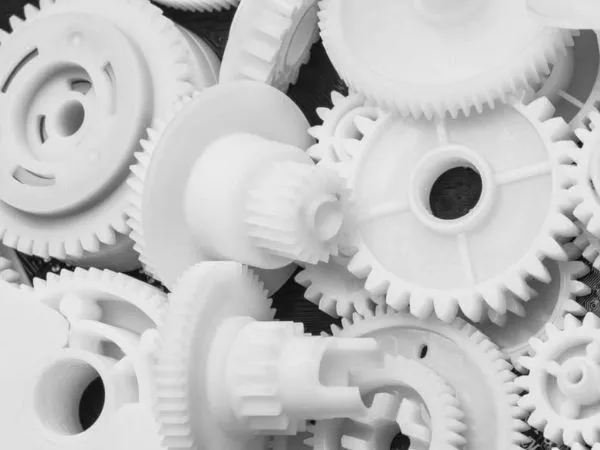

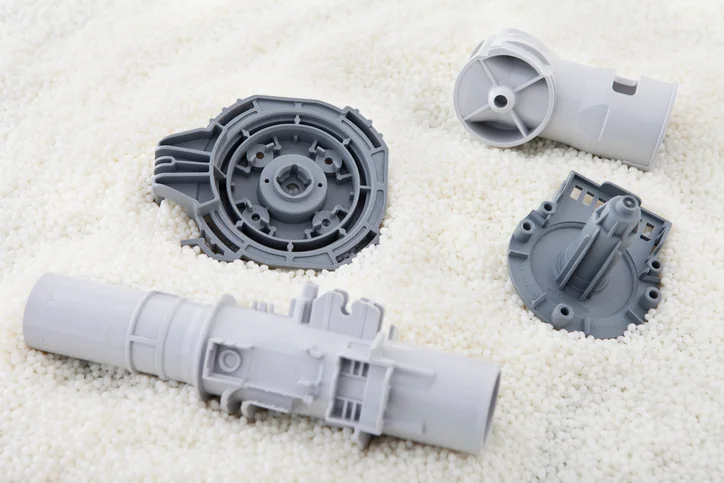

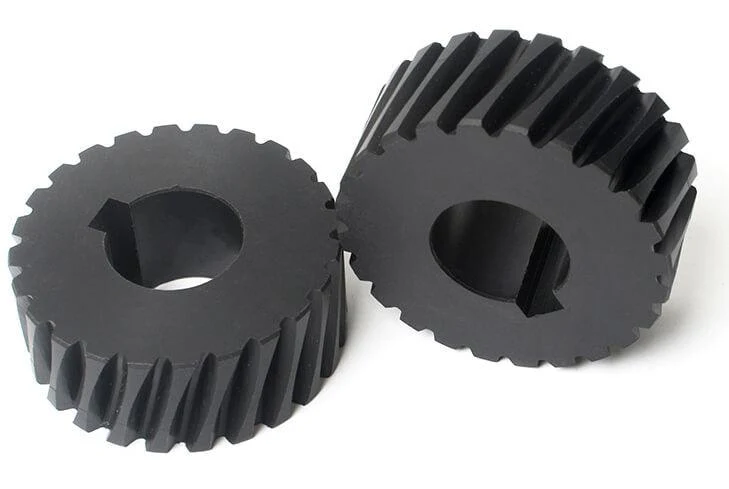

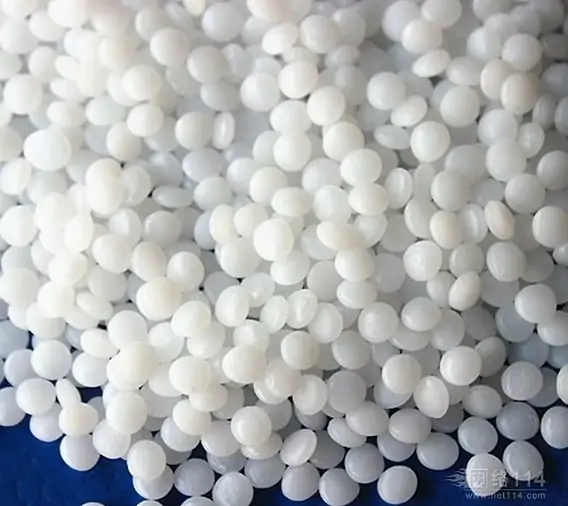

POM (Polyoxymethylene)
POM material boasts excellent mechanical properties and machinability, making it highly popular in injection molding. It features a low coefficient of friction and outstanding fatigue resistance, finding extensive use in gears, bearings, and various mechanical transmission components. POM also exhibits superior dimensional stability, making it suitable for producing precision mechanical parts.
POM also exhibits high chemical stability and temperature resistance, making it suitable for high-performance components in automotive, home appliances, and electronic equipment.
- Standard Colors: Natural (white), black, gray, etc.
- Customizable Properties: Reinforced (glass fiber reinforced), wear resistance, UV resistance, flame retardancy, chemical resistance, high-temperature resistance.

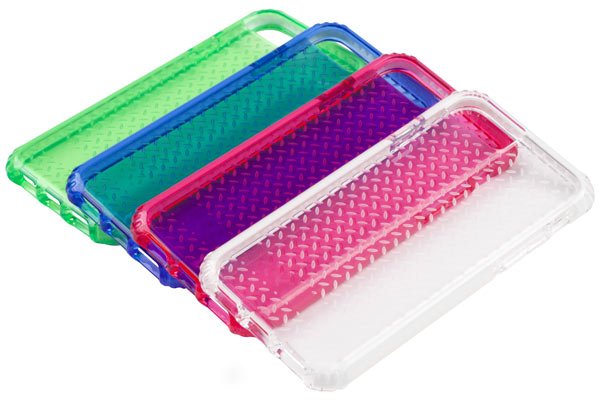

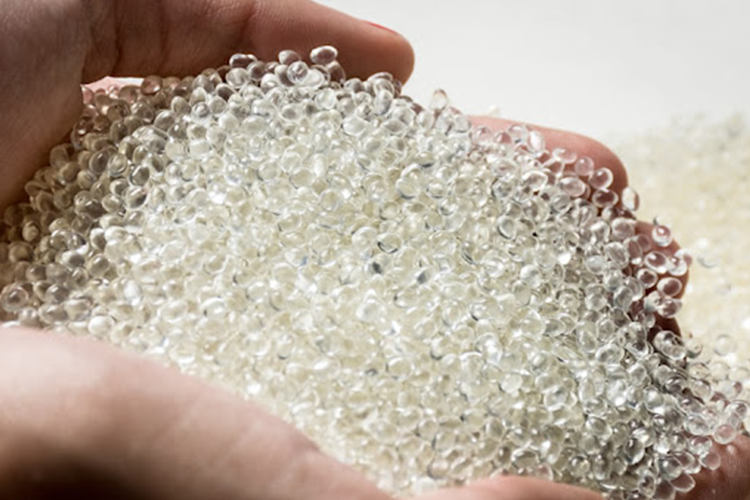

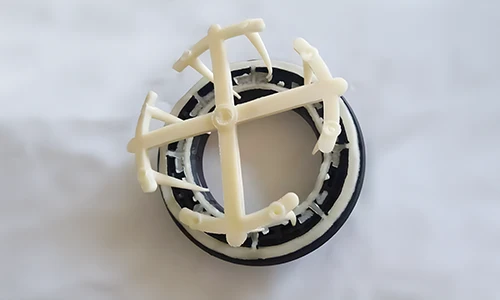

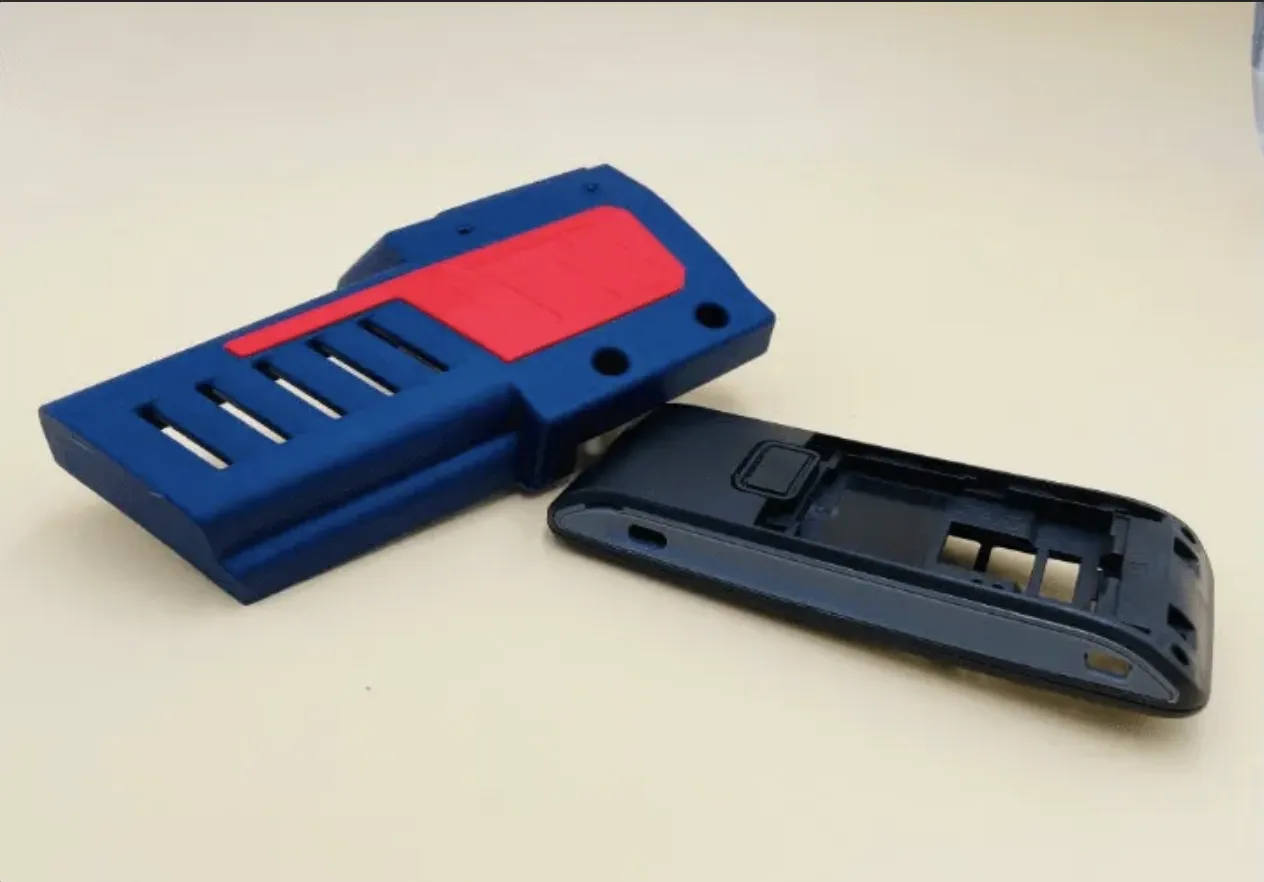

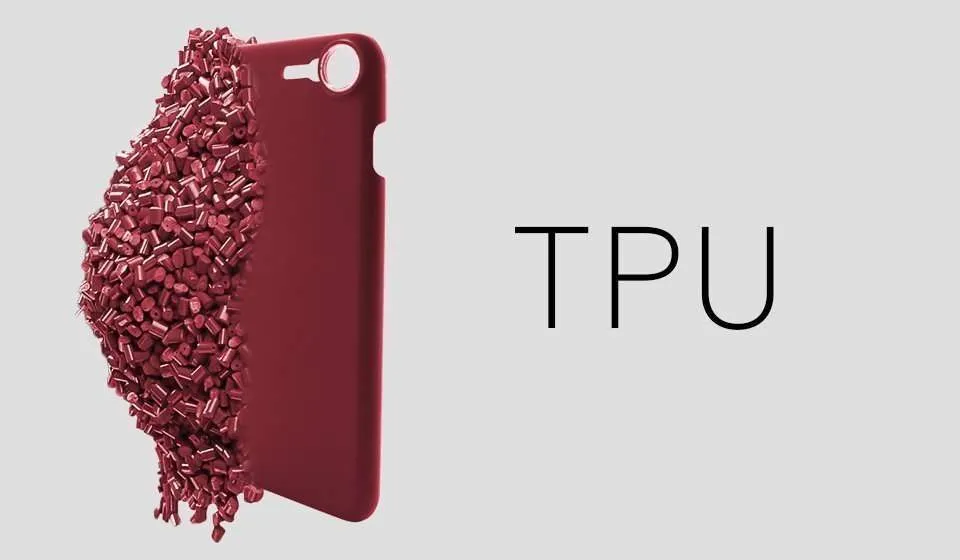

TPU (Thermoplastic Polyurethane)
TPU material offers outstanding elasticity, abrasion resistance, and low-temperature performance. It is suitable for injection molding and commonly used in applications requiring high flexibility. TPU’s softness and impact resistance make it an ideal material for products such as shoe soles, hoses, and seals.
TPU also exhibits strong oil resistance, chemical resistance, and good transparency, making it suitable for medical devices, sports equipment, and electronic protective cases.
- Standard Colors: Transparent, Natural (Opaque White), Black, etc.
- Customizable Properties: UV Resistance, Reinforced Strength, Flame Retardancy, High Temperature Resistance, Anti-Static Properties, Oil Resistance, Chemical Resistance.
Choosing the Right Injection Molding Material
Initiate a consultation to receive expert material recommendations and enhance the quality and market competitiveness of your plastic products.
Advantages
Tailored Solutions
Custom molds and processes designed to meet your specific requirements.
Consistent Quality
Tight tolerances ensure consistent quality for complex parts.
Material Flexibility
Supports a wide range of engineering plastics and thermoplastics.
Rapid Prototyping
From concept to sample, quickly validate designs before mass production.
High-Volume Production
Stable, scalable processes for medium to large batch orders.
Fast Turnaround
Efficient prototyping and production shorten time-to-market.
Injection Molding Services Capabilities
The following table are the detailed specifications of our plastic injection molding services, helping you quickly understand our injection molding capabilities.
| Service | Customized Plastic Injection Molding |
|---|---|
| Maximum Part Size | 400 × 400 × 250 mm |
| Minimum Part Size | 5 × 5 × 5 mm |
| Part to Part Repeatability | +/- 0.05 mm |
| Mould cavity | One cavity, multi-cavity or same different products be made together |
| Available Mold Types | Steel (S136, P20, NAK80) and Aluminum molds; Production levels from 1,000 to 1,000,000+ shots |
| Mold Cavity Tolerances | +/- 0.01 mm |
| Producing Process | Audit drawings – mold flow analysis – design validation – Custom Materials – mold processing – core processing – electrode |
| machining – Runner system processing – parts processing and procurement – machining acceptance – cavity surface treatment process | |
| – complex mode Die – The entire mold surface coating – Mounting plate – mold sample – sample test – sending samples | |
| Mould material | P20,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
| Runner system | Hot runner and cold runner |
| Base material | P20,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
| Secondary Operations | Texturing (MT/VDI), pad printing, laser engraving, ultrasonic welding, threaded inserts, and assembly |
| Undercuts | Lifters, Sliders, Y-type, and L-type undercuts |
| Main thechnology | Milling, grinding, CNC, EDM, wire cutting, carving, EDM, lathes, surface Finish, etc. |
| Software | CAD,PRO-E,UG Design Time: 1-3 days (normal circumstances) |
| Product material | ABS,PP,PC,PA6,PA66,TPU,POM,PBT,PVC,HIPS,PMMA,TPE,PC/ABS, TPV, TPO,T PR,EVA,HDPE,LDPE,CPVC,PVDF,PPSU.PPS. |
| Quality system | ISO 9001:2015 |
| Equipment | CNC,EDM,Cutting off Machine,plastic machinery,etc |
| Establish time | 15 to 45 working days |
Looking for custom solutions?
Whether it’s mass production or small-batch customization, we deliver unmatched quality and service. Contact us today to plan your optimal solution!
Application
Plastic injection molding is widely used in the production of complex, precision small-to-medium-sized plastic components. This process involves injecting molten plastic into a mold to form the desired shape, offering high efficiency, precision, and low cost. It is ideal for mass-producing components, particularly in electronics, automotive, medical, consumer goods, and packaging sectors. Due to its rapid molding capability, reduced material waste, and high production consistency, plastic injection molding has become an indispensable manufacturing technology across numerous industries.

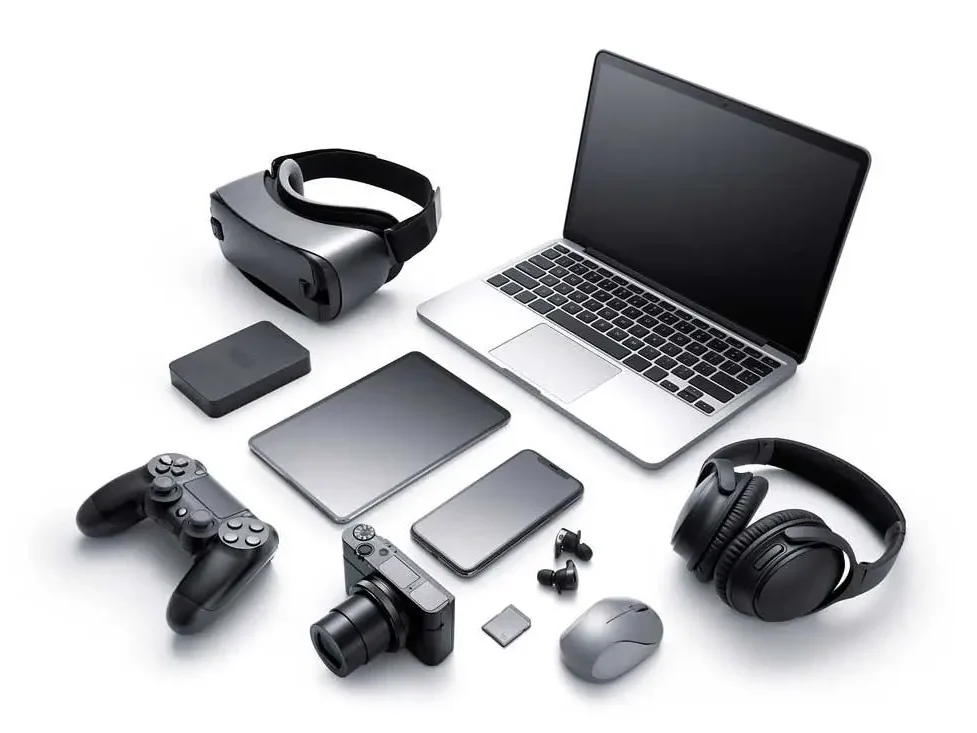

Electronics Industry
Smartphone cases, battery compartments, remote control housings, computer accessories, plugs and sockets, switch buttons, etc.

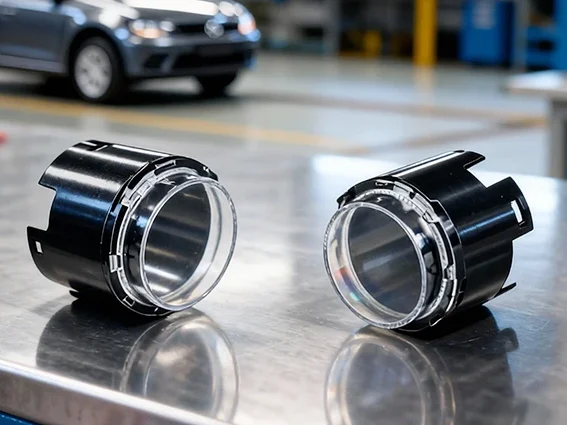

Automotive Industry
Dashboard components, door handles, headlight housings, air conditioning panels, air ducts, automotive accessories, etc.

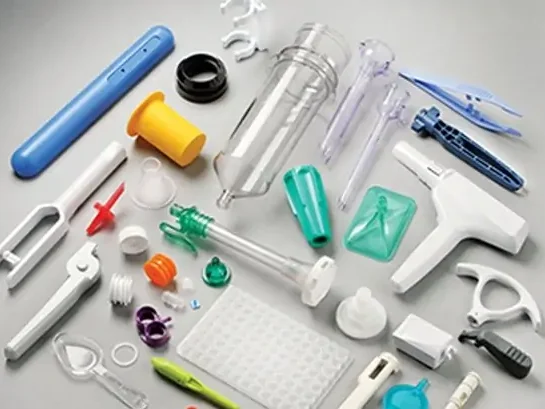

Medical Industry
Syringes, medicine bottle caps, IV tube connectors, medical instrument housings, medical tool handles, etc.

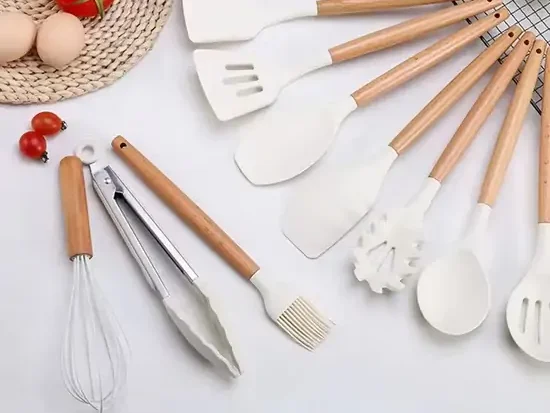

Consumer Goods Industry
Kitchenware, appliance housings, children’s toys, fitness equipment accessories, home decor items, etc.

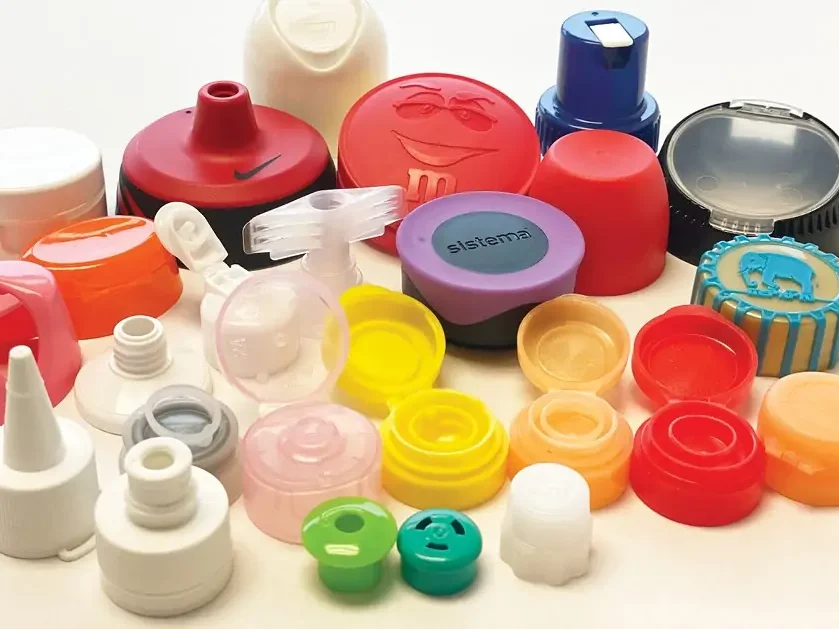

Packaging Industry
Plastic bottles, plastic caps, food containers, pharmaceutical packaging, cosmetic bottles, etc.
Office Supplies Industry
Pencil cases, file folders, office stationery, printer components, calculator casings, label printer housings, etc.

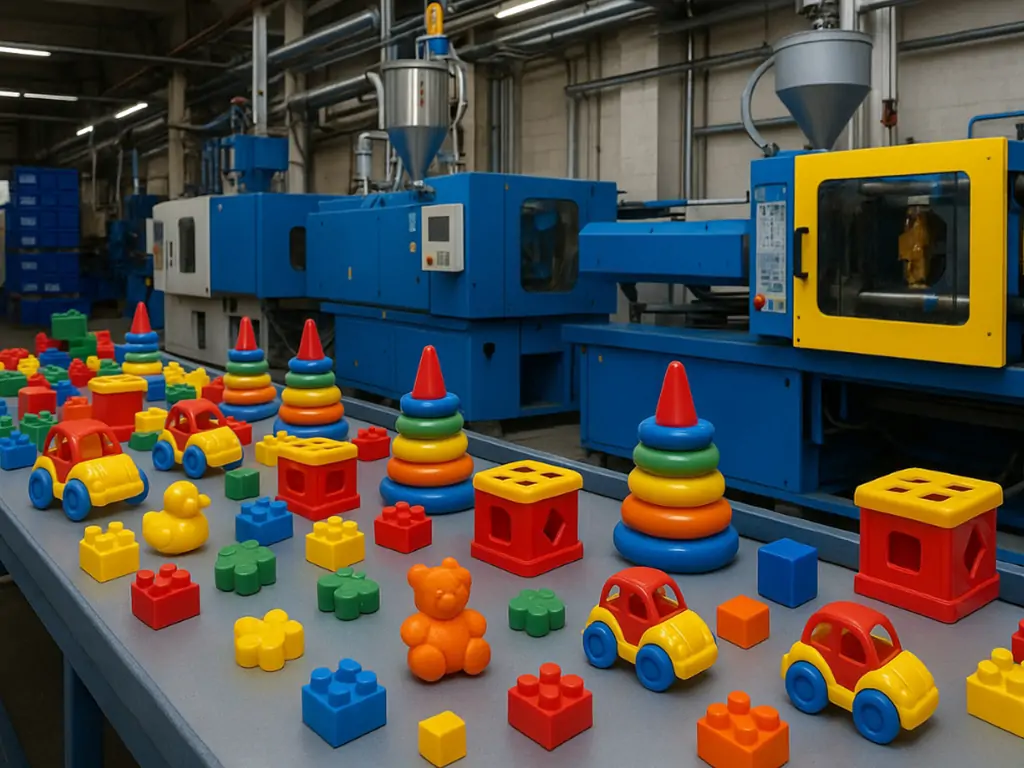

Toy Industry
Plastic puzzles, children’s toy accessories, gaming device casings, remote-controlled toys, etc.

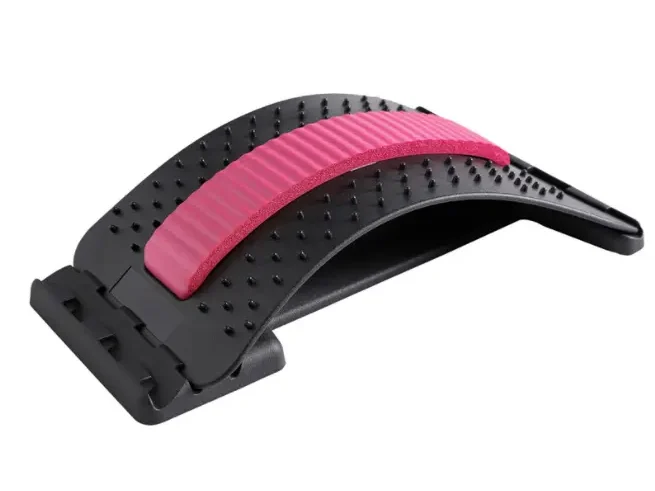

Sporting Goods Industry
Athletic shoe soles, sports protective gear, racquet handles, fitness equipment accessories, etc.
Injection Molding Service Process
Huashuo provides simple and efficient custom injection molding services, including online quoting, precision plastic injection molding, and production-ready injection molded parts, offering reliable quality, fast delivery, and stable performance.
Upload your 3D CAD drawings and provide relevant manufacturing requirements.
We will provide you with a comprehensive and detailed quotation within 2 business days.
Prior to mold manufacturing, we conduct DFM analysis and confirm the design.
Before production, we will deliver a T1 sample for your confirmation.
Upon sample approval, we initiate production and arrange shipment.
After order completion, you may contact us anytime for repeat orders or new placements.
Custom Plastic Injection Molding Services
We provide high-precision custom plastic injection molding services, specializing in delivering tailored solutions for clients across various industries. From product design to manufacturing, Huashuo is committed to supplying high-quality plastic components to help you rapidly bring your products to market. Below is the information we require from you:
Product drawings or 3D CAD files: To accurately understand your design requirements and facilitate mold design and optimization.
Quantity Requirements: Specify the approximate production volume so we can provide an accurate quote and production timeline.
Material Preferences: If you have specific material requirements (e.g., PP, ABS, PE), please inform us in advance so we can offer the optimal solution.
Surface Treatment Requirements: If you have special surface treatment needs (e.g., painting, plating), please include these details.
Other Special Requirements: Provide detailed specifications for any requirements such as temperature resistance, chemical resistance, or other custom needs.
About us
High-Quality Plastic Parts and Injection Mold Manufacturer
HuaShuo Plastics specializes in small to medium-sized parts, providing design, manufacturing, and processing services for custom plastic products and injection molds. We support custom material and sample requests from our clients, meeting the diverse needs for custom products and standard parts processing.
FAQS
Everything You Need to Know About Our Plastic Injection Services
Request a Quote
From mold design to mass production, we offer end-to-end solutions.
Tell us about your application, materials, and volume requirements. Our team will recommend the right process and deliver a tailored manufacturing solution.
Related Articles

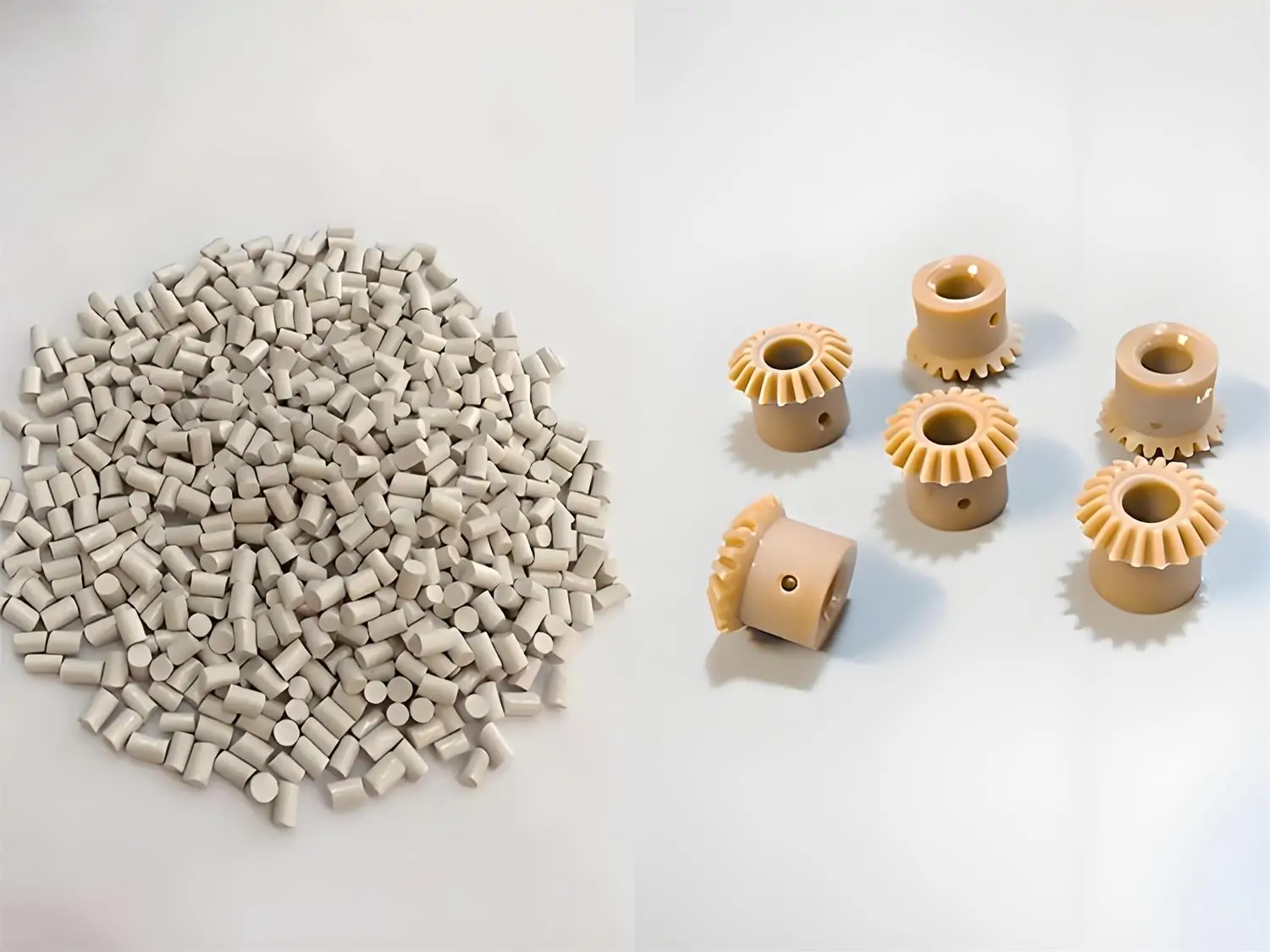

What Is Injection Moulding? Principles, Process, Types, Advantages, Materials
